Series and Parallel resistance Calculator
Series and Parallel resistance calculator is designed to calculate the equivalent resistance. In this calculator, you can determine the equivalent resistance for up to 5 resistors.
Resistance is the property of a resistor, by which it opposes the flow of electric current through it. For a more detailed understanding, read the series and parallel combination of resistors.
In the calculator, choose whether the equivalent resistance is to be determined for series or parallel connection. Then select the number of resistors(Max. 5 resistors) and enter the values of each resistor. Now, when you press the calculate button, you can see the output.
If there are n resistors connected in series, then the equivalent resistance is given by,
![\[ R_{eq} = R_1 + R_2 + R_3 + ....... + R_n \]](https://electrically4u.com/wp-content/ql-cache/quicklatex.com-df7a6054fd8519f8aaca7b1ca9659d07_l3.png "Rendered by QuickLaTeX.com")
If there are n resistors connected in parallel, then the equivalent resistance is given by,
![\[ \frac{1}{R_{eq}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} ........ \frac{1}{R_n} \]](https://electrically4u.com/wp-content/ql-cache/quicklatex.com-72c12e1789af3aa1539a865bdbbf2cdf_l3.png "Rendered by QuickLaTeX.com")

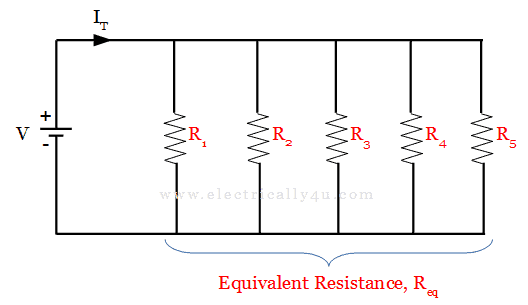

The following circuit shows 5 resistors connected in parallel.
Thus the equivalent resistance in this case is given by,
![\[ \frac{1}{R_{eq}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} + \frac{1}{R_4} + \frac{1}{R_5} \]](https://electrically4u.com/wp-content/ql-cache/quicklatex.com-96445c9401c6ff6f37aa12e106cef2b0_l3.png "Rendered by QuickLaTeX.com")
Look at the solved problem to find the equivalent resistance.
Check out the other topics for a clear understanding.
