Transistor-Transistor Logic (TTL)

Transistor-Transistor Logic belongs to the digital logic family. It consists of transistors at both input and output side, diodes and few resistors.

Unlike Resistor-transistor logic and Diode transistor logic, both the logic function and amplifying function are performed by the transistors.

The TTL integrated circuits are very popular in different applications including computer controls, consumer electronics, industrial control systems, etc.

There are various subfamilies in transistor-transistor logic, which includes standard TTL, Low power TTL, Schottky TTL, Advanced Schottky TTL, High power TTL, fast TTL, etc. In this section, you will learn about the circuit and operation of standard TTL and different output configurations of TTL.

Circuit of standard 2-input TTL NAND Gate

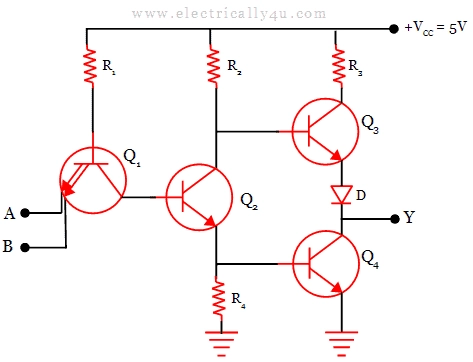

The following figure shows the circuit diagram of the 2-input TTL NAND gate. It has four transistors Q₁, Q₂, Q₃ and Q₄. Transistor Q₁ has 2-inputs on the emitter side. Transistor Q₃ and Q₄ form the output side, called Totem pole output.

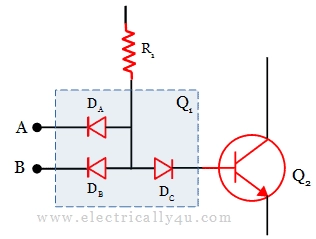

The circuit of a 2-input TTL NAND gate may look complex. We can simplify its operation by considering the diode equivalent of the 2-input NPN transistor, as shown in the below figure.

In the figure, diodes, D_A and D_B represent the 2-input emitter junction of transistor Q₁. Diode D_C represents the collector-base junction of transistor Q₂.

Operation of 2-input TTL NAND Gate

When both inputs A and B are low, both the diodes are forward biased. So the current due to the supply voltage +V_CC = 5 V will go to the ground through R₁ and the two diodes D_A and D_B.

The supply voltage gets dropped in the resistor R₁ and it will not be sufficient to turn ON the transistor Q₂. With Q₂ open, the transistor Q₄ will also cut off. But the transistor Q₃ is pulled high. Since Q₃ is an emitter follower, the output at the terminal will also be HIGH, which is at logic 1.

When any one input, either A or B is low, the diode with low input will be forward biased. The same operation will take place as explained above. In this case, the output will be HIGH.

When both the inputs A and B are high, both the diodes at the emitter-base junction will be reverse biased. The diode D_C at the collector-base junction is forward biased. It will turn on the transistor Q₂. With Q₂ turned ON, transistor Q₄ will also be turned ON.

Both the transistors at the output side will conduct and so the output at terminal will have LOW value, which is considered as logic 0.

Circuit of standard 3-input TTL NAND Gate

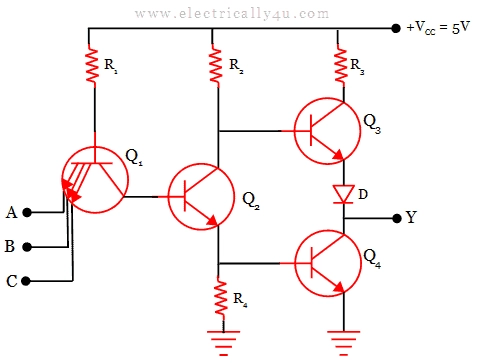

The following figure shows the circuit of the standard 3-input TTL NAND gate. It is the same as that we discussed in the 2-input TTL NAND gate circuit, except that here, the input transistor Q₁ has three emitters instead of two. The operation is the same as the 2-input TTL NAND gate.

Output configuration of TTL

There are three different output configurations in transistor-transistor logic

1. Totem-pole output
2. open collector output
3. Tri-state gate output

Totem-pole output

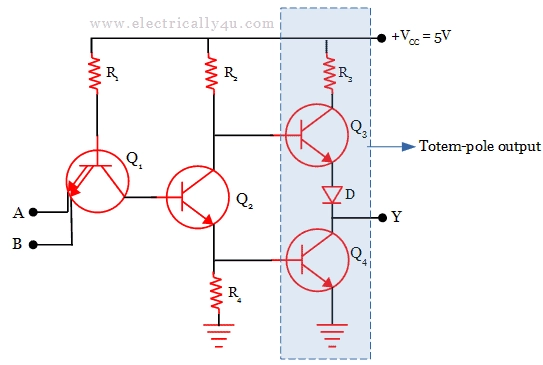

In the circuit shown below, the shaded portion shows the totem-pole output. Transistor Q₃, Q₄, diode D and current limiting resistor R₃ form the totem-pole output configuration of TTL.

There are a few advantages of using this configuration. When the output switches from LOW to a HIGH state, the output transistor Q₄ goes from saturation to cut off. During this transition, the load capacitance across Q₃ charges exponentially from low to a high voltage level.

Due to the low output impedance of both transistors Q₃ and Q₄, the output voltage can change quickly from LOW to HIGH value as the capacitance charge and discharge quickly.

Open collector output

The open-collector output configuration of Transistor-Transistor Logic is shown in the below figure. In this configuration, the transistor Q₃ and pull-up resistor is eliminated. Instead, external pull up resistor for proper operation as shown in the figure.

The output is taken from the open collector terminal of Q₄. When transistor Q₄ is OFF, the output Y will be HIGH and when Q₄ is ON, the output will be LOW.

Tri-state gate output

While operating the transistor in this output configuration, it is possible to attain high speed. Three output state is possible: HIGH, LOW and high impedance.

When the transistor Q₃ is ON, the output at terminal Y is HIGH. The output is LOW when the transistor Q₄ is turned ON. The first and second states are the normal operation of TTL. In the third state, both the transistors Q₃ and Q₄ are turned OFF, which results in neither LOW nor HIGH output.

Advantages

• High-speed operation. The propagation delay is around 10 ms, which is fast compared to DTL and RTL logic devices.
• Less power dissipation compared to DTL and RTL.
• Low cost
• Better fan-out
• Reliable operation for noise.
